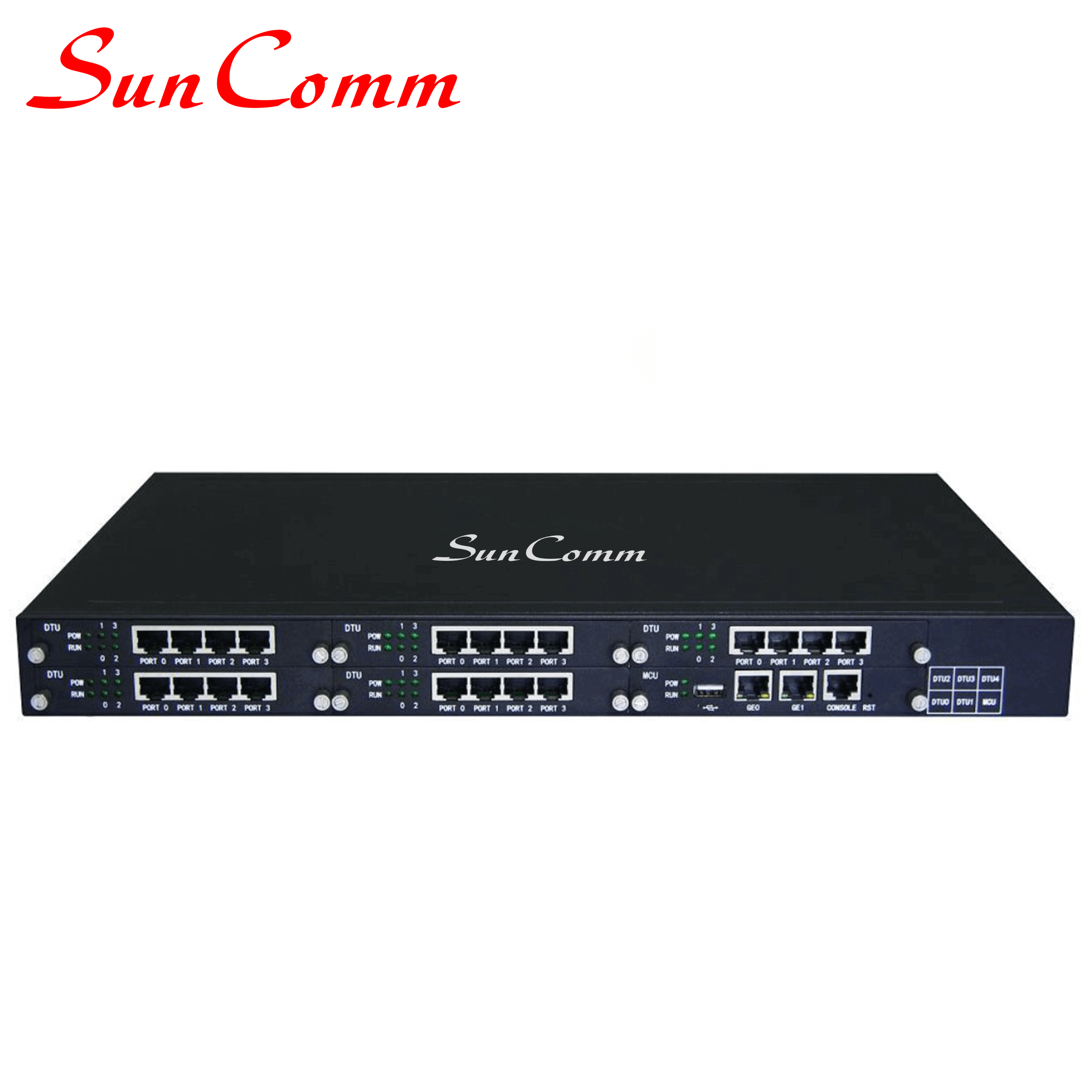

SC-5001-12E1 Trunk Gateway with 12 ISND PRI/ E1, support H.323/SIP protocol

SC-5001 E1/T1 trunk gateway series is a new-generation intelligent VoIP gateway, which is
designed for enterprises, telecom operators and various industries. Focusing on a concept of
maintainable, manageable and operable, SC-5001-12E1 features high integration and large
capacity. It provides carrier-grade VoIP and FoIP. services, as well as value-added functions
such as modem and voice recognition. Thus it constructs a flexible, high-efficient, future-oriented
communication network for users.

SC-5001 E1/T1 trunk gateway series supports a range of signaling protocols, realizing the
interconnection between SIP and traditional signals like SS7 and PRI. It supports multiple
codec methods, offers signal encryption technology and smart voice recognition technology,
and improves the utilizing efficiency of trucking resources while ensuring voice quality. The
trunk gateway is ideally fit for various access networks of SMEs, call centers, telecom
operators, and large-scale enterprises.

Key Features:

Multi-port and high-integrated structure;

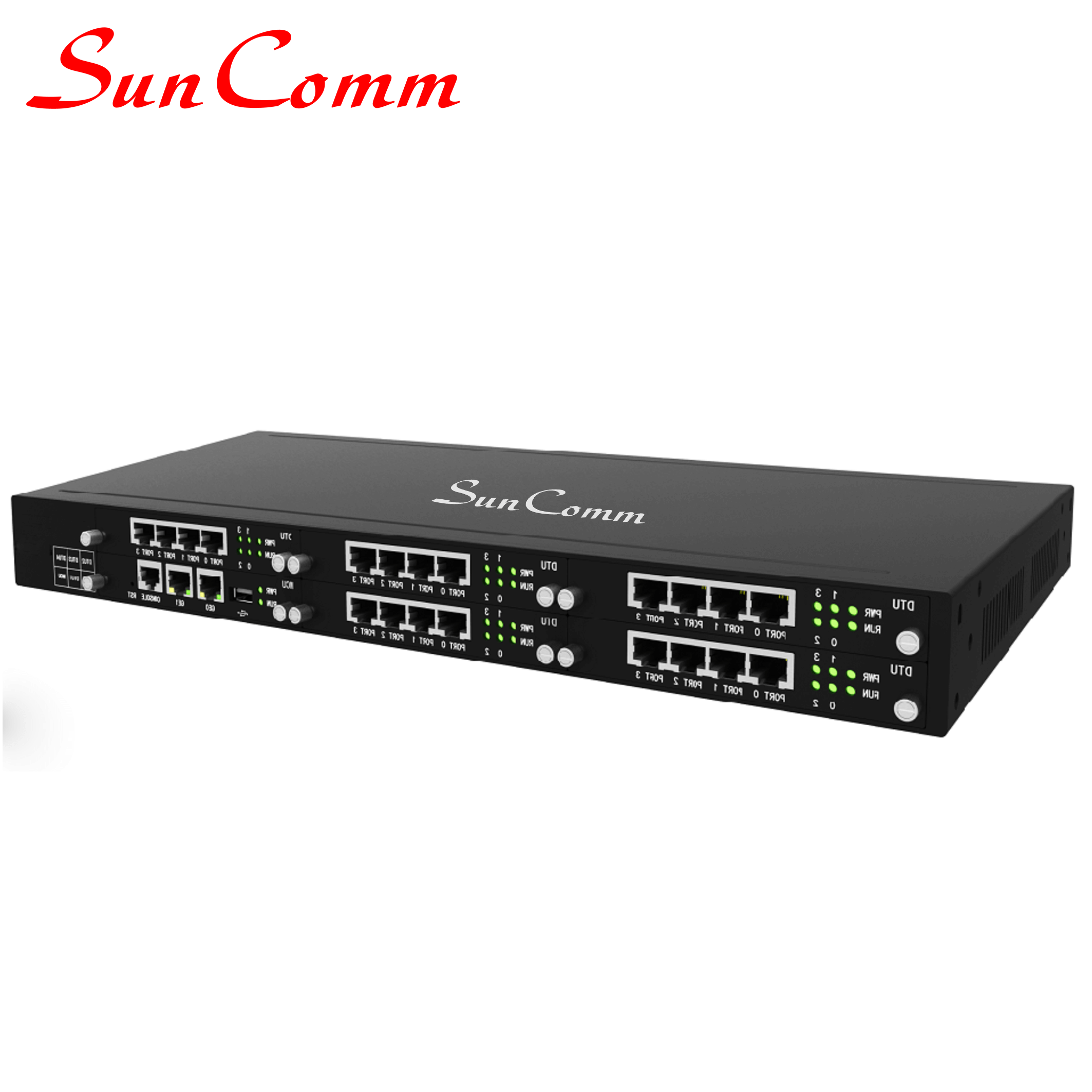

Support 12E1, 16E1, 20 E1/T1 with 1U size Provide various services, such as VoIP, FoIP, Modem and POS

Support flexible dialing rules and operations, allowing users to customize dialing rules according to different working environments

Support multiple coding standards:G.711A/U, G.723.1, G.729A/B and iLBC

High compatibility, interoperable with PBX of Avaya, NEC and Alcatel, and also leading soft-switch of Huawei, Cisco and ZTE etc.

VoIP Protocol:

• NAT: Dynamic NAT, Rport
• SIP v2.0 (UDP/TCP), RFC3261
• SDP, RTP(RFC2833), RFC3262,
• 3263,3264,3265,3515,2976,3311
• RTP/RTCP, RFC2198, 1889
• SIP-T, RFC3372, RFC3204, RFC3398
• SIP Trunk Work Mode: Peer/Access
• SIP/IMS Registration: with up to 256
• SIP Accounts

PSTN:

ISDN PRI

• 23B+D(T1),30B+D(E1), NTor TE
• ITU-T Q.921, ITU-T Q.931, Q.Sig

Signal 7/SS7

• ITU-T, ANSI，ITU-CHINA
• MTP1/MTP2/MTP3, TUP/ISUP

E1Frame Type: DF, CRC-4, CRC_ITU

T1Frame Type:

• 4-Frame Multi-frame (F4, FT),2-Frame
• Multi-frame (F12, D3/4), Extended
• Super-frame (F24, ESF), Remote

Switch Mode (F72, SLC96)

Line Codes:

• E1: NRZ, CMI, AMI, HDB3
• T1: NRZ, CMI, AMI, B8ZS

Clock

Local/Remote Clock Source

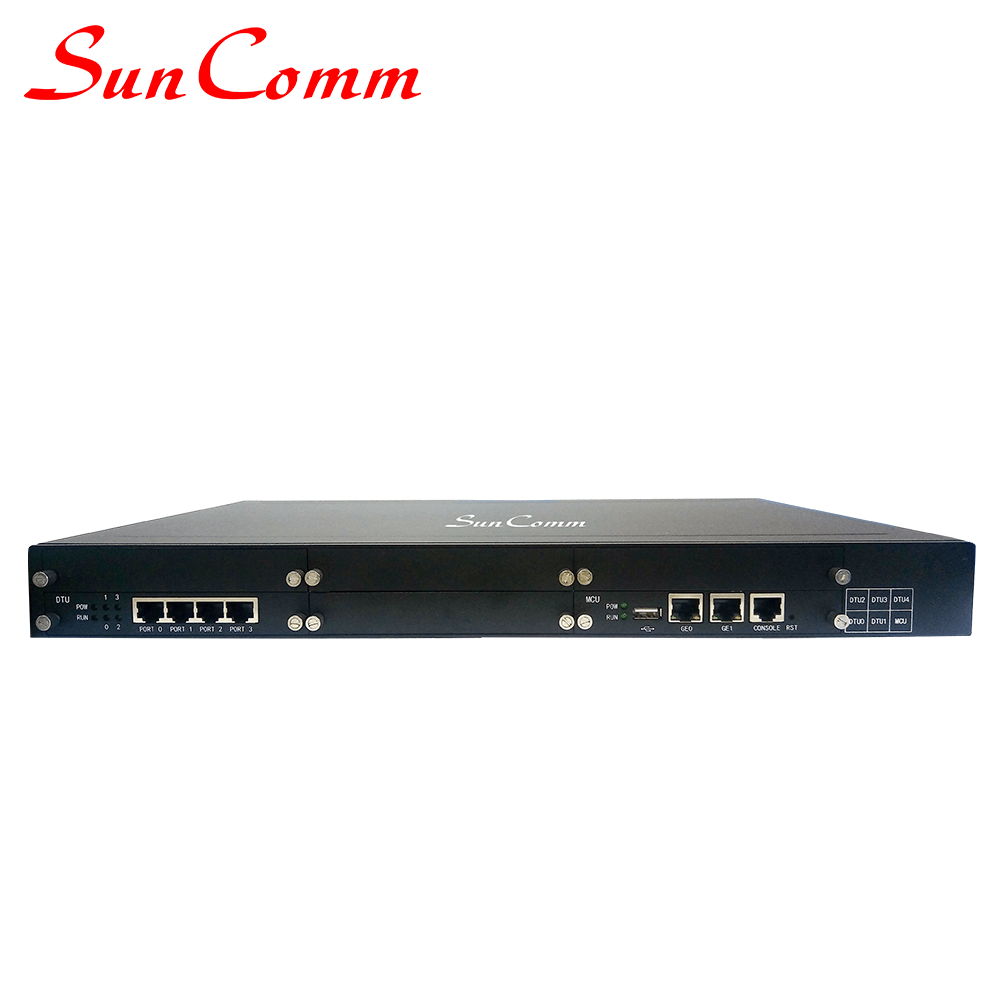

Physical Interfaces:

• E1/T1 Ports: 4/8/12/16/20 E1/T1
• DTU Module: 4 E1/T1
• Interface Type
• RJ48(Impedance 120Ω）
• Ethernet Interface
• GE1: 10/100/1000 BaseT Adaptive Ethernet
• GE0: 10/100/1000 BaseT Adaptive Ethernet
• Serial Port
• 1* RS232, 115200bps
• Voice Capabilities:
• Codecs: G.711a/μ law,G.723.1, G.729A/B, iLBC, AMR
• Silence Suppression
• Comfort Noise
• Voice Activity Detection
• Echo Cancellation (G.168), with up to 128ms
• Adaptive Dynamic Buffer
• Voice, Fax Gain Control
• FAX: T.38and Pass-through
• Support Modem/POS
• DTMF Mode: RFC2833/Signal/Inband
• Clear Channel/Clear Mode

Call Features:

• Intelligent Routing Rules
• Call Routing base on Time
• Call Routing base on Caller/Called Prefixes
• Flexible Route Methods
• PSTN-PSTN, PSTN-IP, IP-IP, IP-PSTN
• 256 Route Rules for each Direction
• Caller and Called Number Manipulation

Software Features:

• Voice Codecs Group
• Local/Transparent Ring Back Tone
• Overlapping Dialing
• Dialing Rules，with up to 2000
• PSTN group by E1 por tor E1 Timeslot
• IP Trunk Group Configuration
• Caller and Called Number White Lists
• Caller and Called Number Black Lists
• Access Rule Lists
• IP Trunk Priority
• RTP and Signaling Encryption（VOS RC4)

Maintenance:

• Firmware Upgrade via TFTP/FTP/Web
• Network Capture
• SNMP v2
• Syslog: Debug, Info, Error, Warning, Notice
• Call History Records via Syslog
• NTP Synchronization
• Centralized Management System
• Web GUI Configuration
• Data Backup/Restore
• PSTN Call Statistics
• SIP Trunk Call Statistics

Environmental:

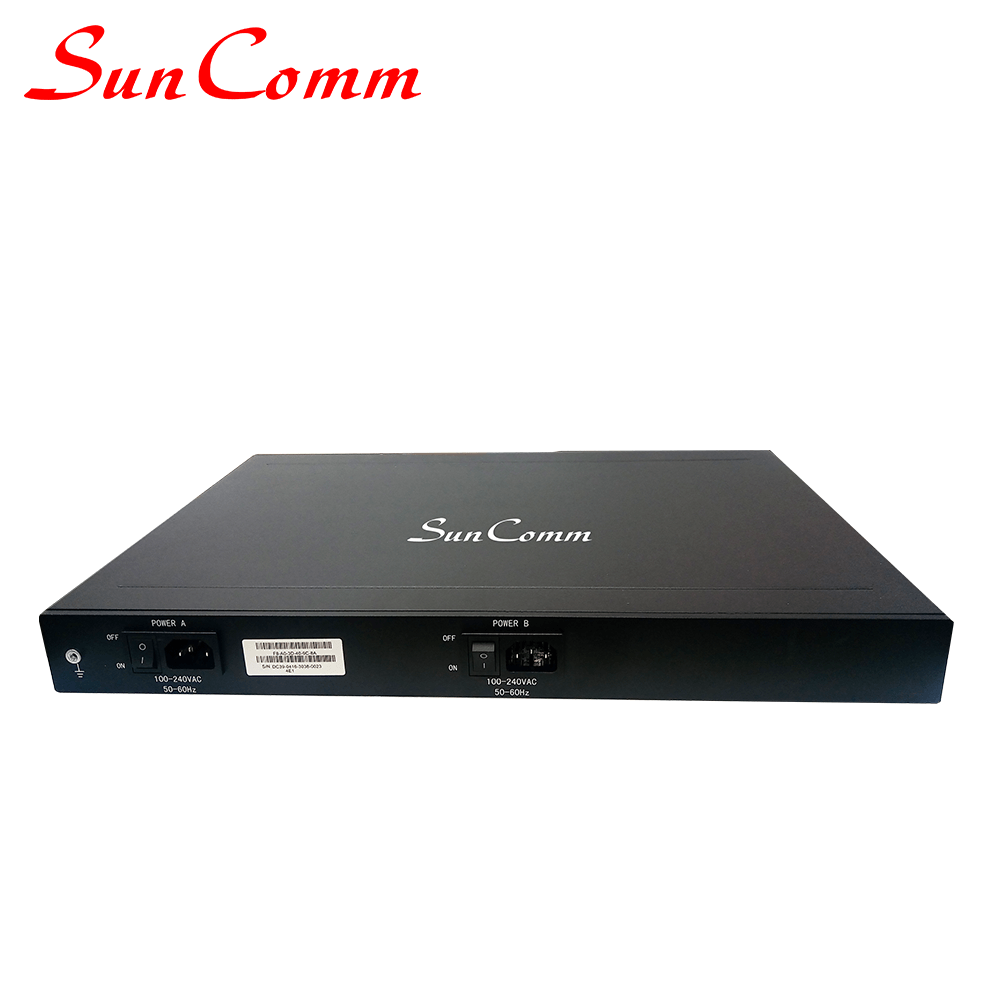

• Redundant Power
• Power Supply: 100-240VAC, 50-60 Hz
• Power Consumption:45W
• Operating Temperature:0 ℃~ 45 ℃
• Storage Temperature: -20 ℃~80 ℃
• Humidity:10%-90% Non-Condensing
• Dimensions(W/D/H): 436*300*44.5mm(1U)
• Unit Weight: 3.8kg
