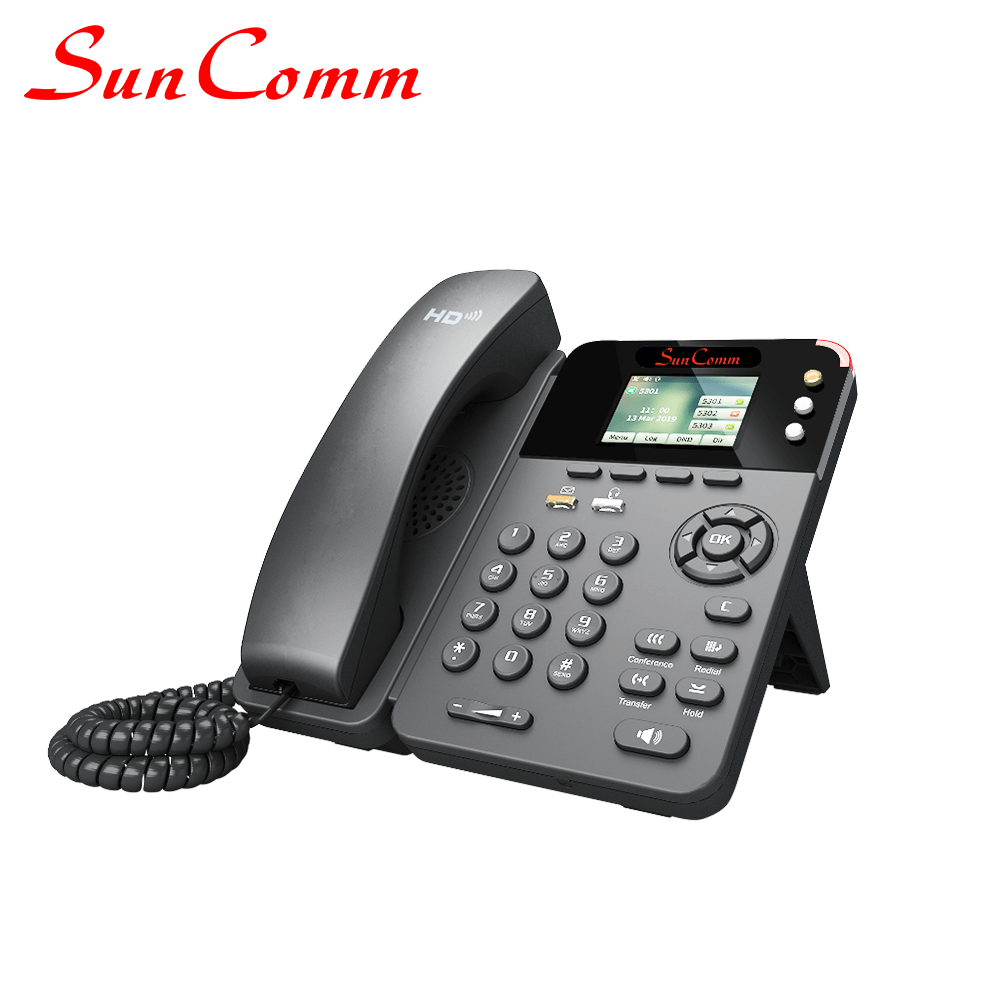

VoIP Phone with 3-Lines 3 SIP account, HD Voice, PoE, 2 x PC port and LAN port, multi-language
SC-3082-IP/SC-3082-PE is a highly innovative based SIP IP phone, It can perfectly satisfy with all kinds of the businessman communication. It integrates with 2.4” 320x240-pixel color LCD with backlight, a large resolution display screen, elegant and intuitive user interface. SC-3082-IP/SC-3082-PE offers HD handset, HD speaker and HD codec (G.722), with a rich set of business communication features that can definitely improve working efficiency and sense. It is highly suitable for SMEs, Home Office and ISP applications.
SC-3082-IP/SC-3082-PE help user connect the network simply and enjoy the network easily.
Key Features
- Color LCD with backlight.2.4” 320x240-pixel
- HD Voice: HD Codec, HD Speaker, HD Handset.
- 3 SIP accounts and support 3-way conference, SMS.
- 2 x 10/100Mbps PC & LAN, PoE, 1xRJ9 Headset port.
- One standard (42.5°) level bracket and wall-mountable.
- XML/LDA, Contact Search.
- Auto-provision, HTTP/TFTP/FTP.
- Multi-language: Chinese, English, French, Russian, Italian, Polish, Portuguesa, Spanish, Turkish etc…
|
Phone Features |
3 SIP accounts, MWI(Line1) Call hold, Call waiting, Call forward, Call return, Call transfer (blind/busy/ask) Caller ID display, Redial, Mute, DND Auto-answer, 3-way conferencing Speed dial, SMS, Voicemail Tone scheme, Volume control Direct IP call without SIP proxy Ring tone selection/import/delete Black list, Hand-free indicator. Call history: dialed/received/missed (50 -entries) Soft keys programmable, Supports PC control Support switching SIP server & Second server Optional Feature: TR069，IPv6，HTTPS web management，802.1x，OPEN VPN |
|
Advanced Features |
XML Phone Book search and input & output Enterprise phone book (800 entries) Personal Phonebook (300 entries) LDAP phone book 15 paperiess programmable keys |
|
IP PBX System Integration |
Busy lamp field (BLF), BLF list Bridged line appearance (BLA) DND & Forward synchronization Intercom, Paging, Music on hold Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection Network conference, Distinctive ring tone |
|
Codes and Voice Features |
Wideband Codec: G.722 Narrowband codec: G.711μ/A, G.726, G.729AB, iLBC, VAD, CNG, AGC, AEC, Full-duplex |
|
Security |
VLAN QoS (802.1pq), SRTP Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess Secure configuration file via AES encryption Encryption for configuration file Phone lock for personal privacy protection Admin/User 2-level configuration mode, LLDP, CDP L2TP VPN tunneling protocol-added |
|
Network Features
|
SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; SRTP voice encryption (RFC3711) Redundant server support NAT Traversal: STUN mode DTMF: In-Band, RFC2833, SIP Info, Auto HTTP Web Management IP Assignment: Static/DHCP/PPPoE Bridge/Router mode for PC port TFTP/DHCP/PPPoE client Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server |
|
Management |
Auto-provision via FTP/TFTP/HTTP/HTTPS Configuration: browser/phone/auto-provision Trace package and system log export |
|
Physical Features |
2.4”320x240 color LCD; 34 keys including 2 programmable keys; 1xRJ9 headset port; 2xRJ45 10/100M Ethernet ports; Line keys with LED indicator: 3 LED for call and message waiting indication; Dual-color (red or green) illuminated LEDs for line status information; 42.5° bracket and wall-mountable Power adapter: AC 100~240V input and DC 5V/1A output; Power over Ethernet, IEEE 802.3af,class 0 Power consumption: 1.4-2.6W Net weight: Dimension: Operating humidity: 10~95% Storage temperature: up to 60°C |
|
Package Features |
Qty/CTN: 10 PCS N.W/CTN: 7.58kg G.W/CTN: 8.8kg Measurement: 0.068 CBM (±0.5%) Carton Measurement: 455x390x222m |
