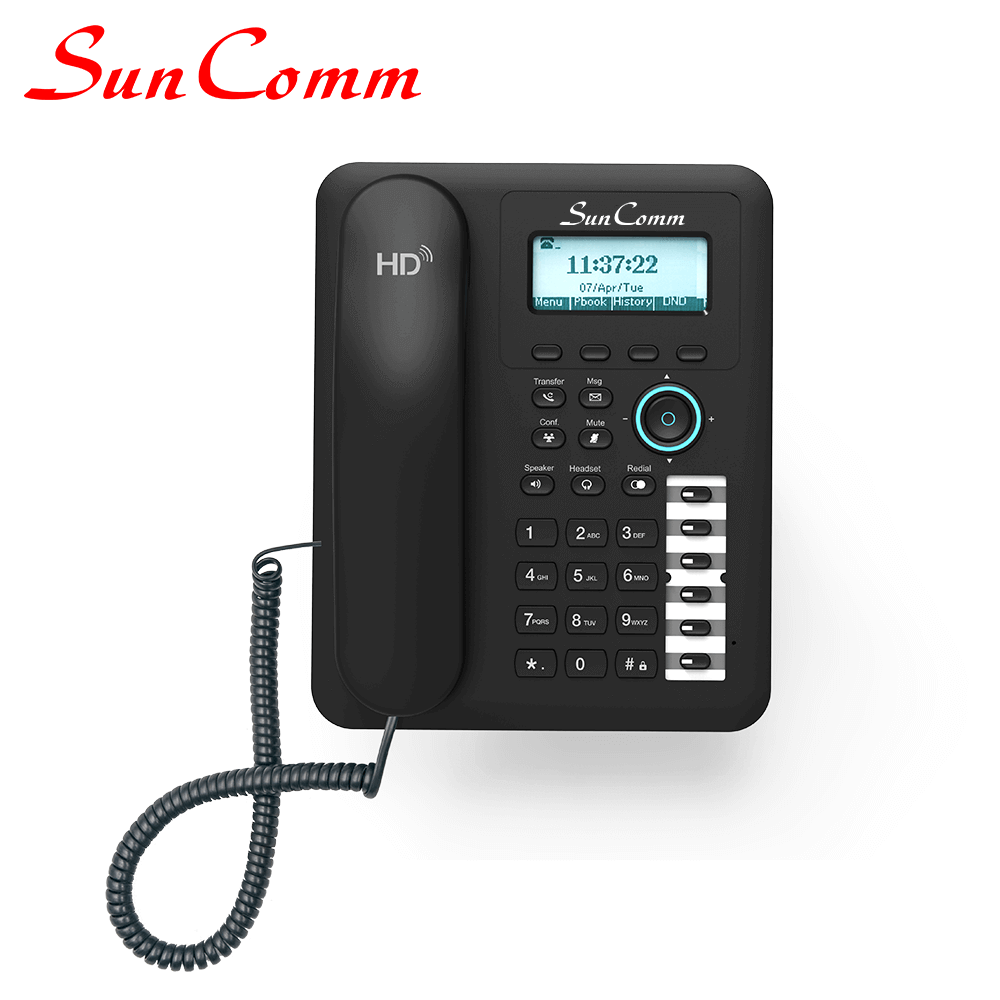

Color LCD SIP IP Phone with PoE, 2LAN, 2 SIP accounts, 2.8 Color LCD display, HD voice, Gigabyte
.png "SunComm SC-9072-PE Color LCD SIP IP Phone with PoE, 2LAN, 2 SIP accounts, 2.8 Color LCD display, HD voice, Gigabyte")
FEATURES:
- 2 lines indicators with individual SIP account profiles
- Call waiting, hold, mute, transfer (blind or attended), forward, 3-way conference, dial plan, hotline, DND, etc.
- Breathing LED ring to indicating message and state
- Full duplex speaker phone w/advanced audio echo cancellation
- Headset RJ9 port
- Large phonebook (up to 500 contacts) and call history (up to 100 records
- Volume Adjustable, Ring tones Selectable
- Country Ringtone Signal
- XML Browser
- Keypad lock
- Action URL/URI
- LDAP Phone Book
- 6 programming keys set as speed dial, SOS, call processing and BLF etc., with green LED indicator
- Two angle desktop & wall mount
- Compatible with all leading IP PBX Systems
Highlights:
- 2 SIP accounts
- PoE
- HD voice
- Opus codec support
- RJ9 Headset
- High dot matrix 128x64 LCD display
- Auto provision
- Wall mountable
- VMS SaaS DIY configure & FoTA
- Two-port 10/100M Ethernet Switch
- Two-port 10/100/1000M Ethernet Switch
- Stand with 2 adjustable angles
- RFID (optional
- TR069
|
Display and Indicator |
128 x 64-pixel graphical LCD with backlight or 2.8’ 320 x 240 TFT LCD LED for call and message waiting indication Dual-color (red or green) illuminated LEDs for line status information Intuitive user interface with icons and soft keys Caller ID with name number Power saving |
|
Interface |
2 x RJ45 10/100M Ethernet port 2 x RJ45 10/100/1000M Ethernet port Power over Ethernet (IEEE 802.3af), class 2 1 x RJ9 (4P4C) handset port 1 x RJ9 (4P4C) headset port |
|
Networking Features |
SIP v1 (RFC2543), v2 (RFC3261) DNS SRV (RFC3263) Redundant server support NAT Traversal: STUN mode DTMF: In-Band, RFC2833, SIP Info Proxy mode and peer-to-peer SIP link mode IP Assignment: Static/DHCP/PPPoE TFTP/DHCP/PPPoEclient HTTP/HTTPS server DNS client, NAT/DHCP 802.1Q VLAN VPN (Open VPN/L2TP) Time and date synchronization using SNTP |
|
Directory |
Local phonebook up to 1000 entries Black list XML/LDAP remote phonebook Smart dialing Phonebook search/import/export Call history: dialed/received/missed/forwarded |
|
Management |
Syslog Auto-provision via FTP FTP/TFTP/HTTP/HTTPS Configuration: browser/auto-provision Factory configuration customized TR069 VMS |
|
IP PBX Features |
MWI Music on hold, Intercom Call Pickup, Group call, Call recording Anonymous Call, Anonymous Call Rejection Busy Lamp Field (BLF) Hot-desking, Flexible seating |
|
Audio Features |
HD Voice with high volume Hearing Aid Compatible (HAC) Codec: Opus G.722, G.729, G.711,G723, G726, VAD, CNG, AEC, PLC, AJB, AGC Full-duplex speakerphone with AEC |
|
Security |
Supports HTTPS (SSL) Supports SRTP for Voice Data Encryption Supports Login for Administration SIP Over TLS |
|
Physical & Environmental |
Color: Black Wall mountable External AC adapter: AC 100~240V input and DC 5V/600Ma output Dimensions: 210 x 170 x 45 mm Weight: 680g (base unit & handset) Power consumption (PSU): 2-3 W Power consumption (PoE): 3-4 W Operating humidity: 10~95% Operating temperature: -10 ~50°C(+14~122°F)
|
|
Package Features |
Package content: IP phone, Handset with handset cord, Ethernet Cable (1.5m CAT5E UTP Cable)-Stand, Quick Start Guide, Power Adapter(Optional) Qty/CTN: 10PCS G.W/CTN: 10kg Giftbox size: 260 x 225 x 72 mm Carton Meas.: Size: 350 x 295 x 350 mm |
