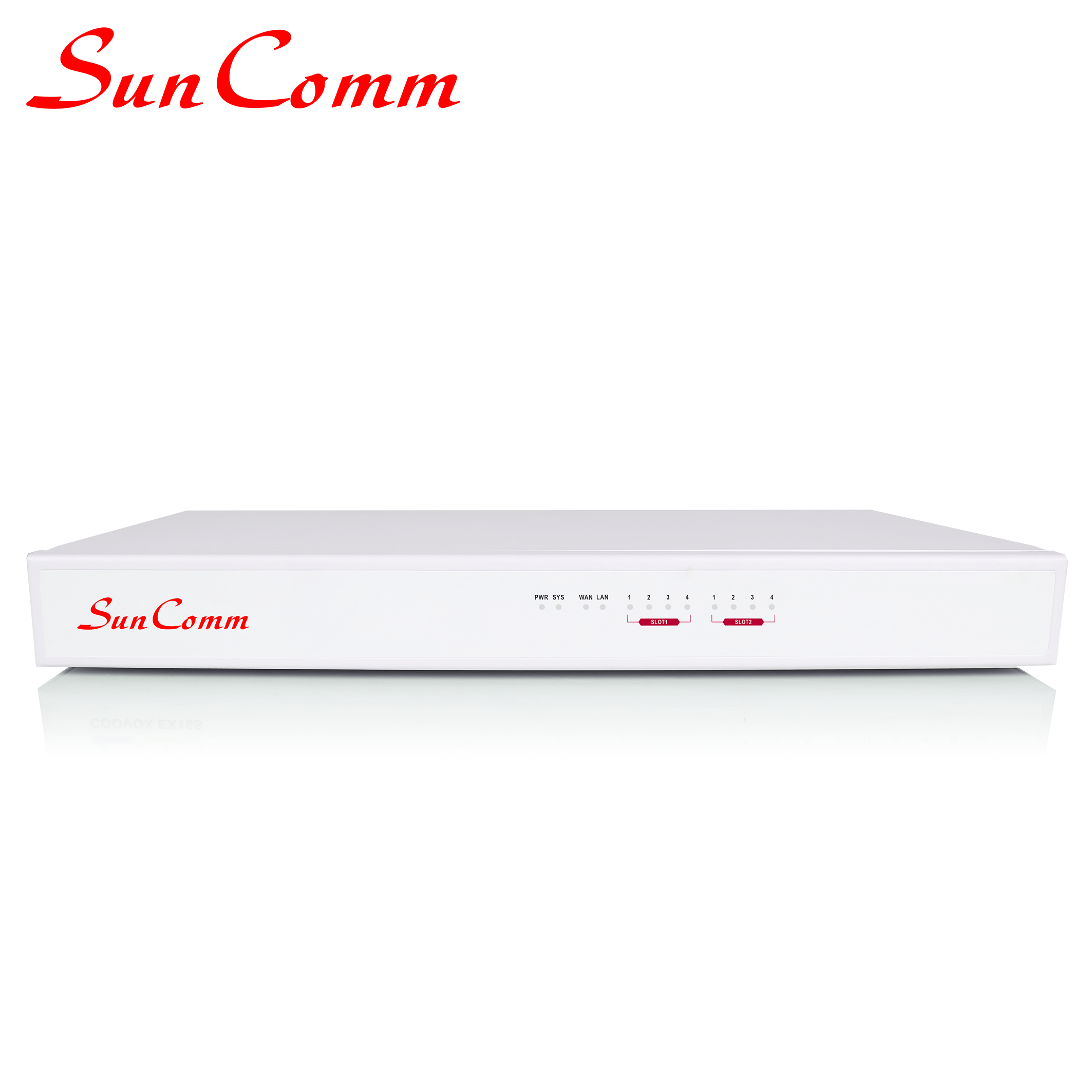

SC-2080T-8O IP PBX with 4FXO, 100-200 extensions and 80 simultaneous call
The SC-2080T series is a unified communication system for SMB. Not only come with full PABX features like Caller ID, Auto Answer but also advanced features of IP PBX like Remote Extension, IVR, Call Recording, Conference Call etc.
The SC-2080T adapts small and medium business under 600 extensions. By attaching with EX16S FXS expansion box, The SC-2080T can build a hybrid telephony network easily with no configuration required. Meanwhile, The Series provides flexible options for different trunks you may subscribe from any Telco, PSTN CO lines, GSM trunks, SIP trunks (VoIP).
Working frequency:
Quad-band: GSM850 MHz/ EGSM 900 MHz/ DCS 1800 MHz/ PCS 1900 MHz
3G WCDMA: UMTS 850MHz/ UMTS 900MHz/ UMTS 1900MHz/ UMTS2100MHz
Modules List for 2 Slots use:
|
SC-2080T slot SC-2080T Module |
Slot 1 |
Slot 2 |
|
4FXS |
P |
P |
|
4FXO |
P |
P |
|
2FXO+2FXS |
P |
P |
|
2GSM (SC-2080T-GSM2) |
P |
P |
|
4GSM (SC-2080T-GSM4) |
P |
P |
|
4 3G WCDMA (SC-2080T-3G4) |
P |
P |
Highlights & Features
- Extensions: 100-200
- Concurrent Calls: 80
- Recordings and Voicemail: 15000 hrs
- Conference Rooms: Unlimited
- RAM: 1GB DDR3
- Storage: 1TB Surveillance HDD
|
Telephony Features |
Call Back Call Forward Call Transfer Call Group Call Pickup Call Queue Call Parking Call Waiting Caller ID Blacklist Music On Ringback 3-Way Calling Conference Call Video Calls Follow Me DISA Smart DID Speed Dial IVR (Multi-layer) Voicemail |
|
PBX Highlights |
Remote Custom Logo & Theme Remote Management Softphone APP Auto Provisioning (QR Code Scan) IP Phone Auto Provisioning LDAP Phonebook Auto Configure (H81, H83) EX16S Auto Provisioning SIP Proxy (NAT Traversal) Open API Interface for Secondary Development to Connect with 3rd Systems Multilingual Interface: Simplified Chinese, Traditional Chinese, English, Spanish, Czech, Korean Multilingual System Voice: Chinese, English, Spanish, French and other 24 languages |
|
Multi-level User Administration |
Admin user: All Privileges Operator user: Extensions, faxes, CDR, recording, etc. Billing user Operator panel user |
|
Codecs & Protocols |
SIP (RFC3261), IAX2 DTMF (RFC4733, SIPINFO, In-Band) Transport Protocols: UDP, TCP, TCP, TLS, SRTP Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP Video Codecs: VP8, H.264, H.263+, H.263, H.261 Audio Codecs: Opus, G.722, G.711, (a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB |
|
Network Features |
Network (WAN): Static IP, DHCP, PPPoE VPN: PPTP, OpenVPN Static Routing DHCP Server VLAN (WAN&LAN Interface) Virtual IP SIP Proxy (NAT Traversal) |
|
Security Features |
Firewall based on iptables Geo-IP (Security policy based on IP address geographical locations) Intrusion auto detection and prevention IP Black/ White List Extension Permit IP Data Backup and Recovery |
|
System Capacity |
200 Extensions 80 Simultaneous Calls 60 Conference Attendees (Recommended) 15000 hrs Recording (Internal Storage 12 EX 16S Deployment (Recommended) Unlimited SIP/IMS Trunks (Max) Unlimited IVR Levels Unlimited Number of Queues Unlimited Phonebook Contacts Maximum 200 Paging Members 500000 CDR History 1TB USB Expansion Storage Unlimited Number of Incoming Routes Unlimited Number of Outbound Routes |
|

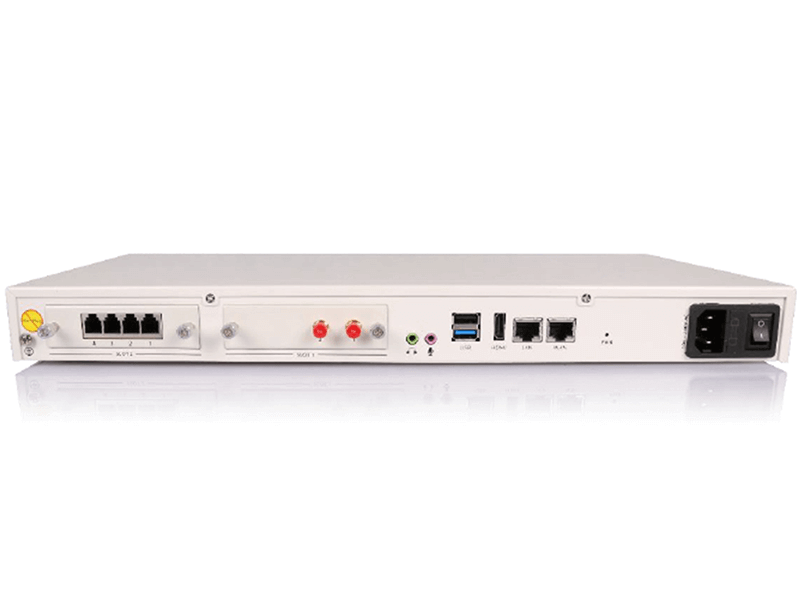

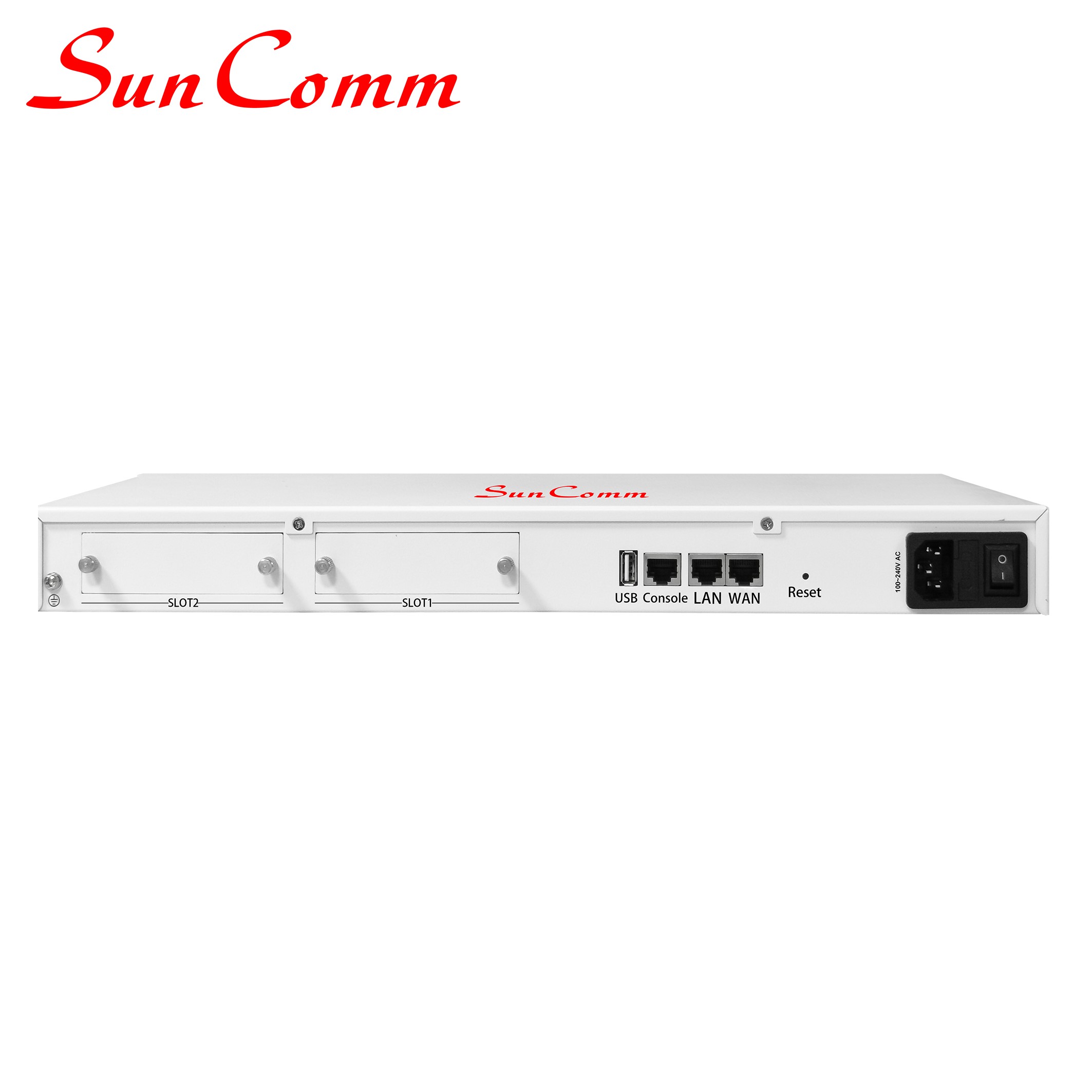

Hardware Interfaces |
2 Slots (Adapter module: FXO/FXS/GSM/WCDMA) 1 Reset Button 1 Power Interface 1 WAN Interface 1 LAN Interface 1 Console Interface 1 USB Interface Hardware Echo Cancellation Module 1 Interface for Optional UMTS Module |
|
Hardware Specifications |
CPU: ARM 4 Core RAM: 1GB DDRS Storage (SD Card): 8GB SD Card (Industrial grade) + 1TB Surveillance HDD USB (Extended Storage Supported): 1 Port (File system format: FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4) Console Port: 1 Port (Rate 115200) Reset Key: Support Power Supply: Input AC 100~240V, 50/60Hz, MAX1.5A Output DC 12V/2A |
|
Environment |
Working Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 55°C Humidity: 5 ~ 95% Non-condensing |
