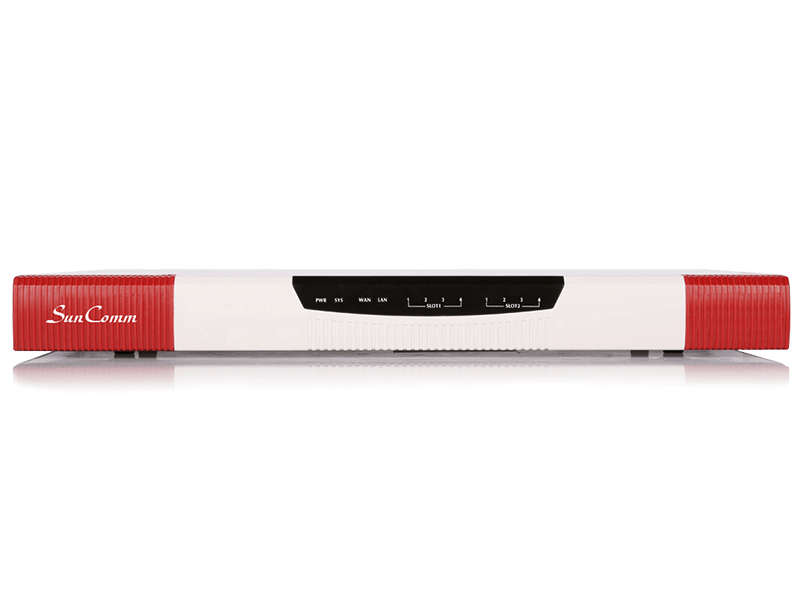

IP PBX with 100-200 extensions, 60 simultaneous call
Model：SC-2060
Add to inquiry
SC-2060 is a next-generation feature-rich IP PBX dedicated for medium and large enterprises. Enhanced hardware platform carries the newest powerful Asterisk 13 to bring you excellent unified communication experience with innovative VoIP functionalities. SC-2060 is suitable for the enterprises require 100 to 200 extensions and maximally 60 concurrent calls.
Highlights & Features
- Modular Design.
- Fax to email and one click to send fax.
- USB port for extended data storage.
- SIP over IPv6.
- LDAP phonebook.
- WebRTC enables your browsers and mobile applications with Real-Time Communications (RTC) capabilities.
| PBX Features | Up to 200 Extensions Up to 60 Simultaneous Calls Up to 40 Simultaneous Conference Attendees Up to 36 Call Queues Up to 36 Conference Rooms Recording up to 150 hrs (WAV) Recording up to 1500 hrs (GSM) Automatic Recording/One Touch Recording CDR (Call Detailed Recording) Multi-layer IVR (Interactive Voice Response) TDM/SIP/IAX Extensions/trunks Flexible Inbound/Outbound Routing Time-based Routing Remote Extensions & Remote Offices Paging & Intercom Video Call Call Forward/Transfer Web Extension (WebRTC) Follow Me DND (Do Not Disturb) Ring Groups Pick-up Groups DISA (Direct Inward System Access) Virtual Fax Voicemail to Email/Fax to Email One Number Stations Smart DID |
| Hardware | Intel Dual-core 2.41GHz CPU 2GB DDR3L RAM 16GB On board EMMC HDMI (High-Definition Multimedia Interface) Audio In/Out (Paging) 2x1000Mbps Ethernet Ports USB 3.0 + USB 2.0 (Extended Storage) 2xModule Slots |
| Telephony Signaling & Control | SIP (RFC3261) SIP over UDP/TCP/TLS IAX2 DTMF: RFC2833, SIP Info, In-band SRTP PRI, SS7, MFC/R2 |
| Network & Protocols | IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, SNMPv2, NTP, SNTP, TFTP, SSH, HTTPS, SRTP, TLS, LDAP, TR069 |
| Media | Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX Video Codecs: H.261/H.263/H.263+/H.264 Fax: T.38 (passthrough) |
| Security | HTTPS, Fail2Ban, Permit IP, Whitelist, Blacklist VPN Server (PPTP, L2TP, OpenVPN, IPSec) VPN Client (N2N, PPTP, L2TP, OpenVPN, IPSec) |
| Power | AC 100~240V, 50/60Hz, 1.5A max |
| Environment | Working Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 55°C Humidity: 5 ~ 95% Non-condensing |
| Size | Unit Dimension: 440x222x44mm Package Dimension: 500 × 310 × 90mm Unit Weight: 2.46kg Package Weight: 4.3kg |
