4G LTE VoIP Terminal / 4G VoIP Gateway 32 SIM for 4G – VoIP connection, Call Center device, VoLTE

Model：SC-3295-4G

covering 4G 3G 2G

Add to inquiry

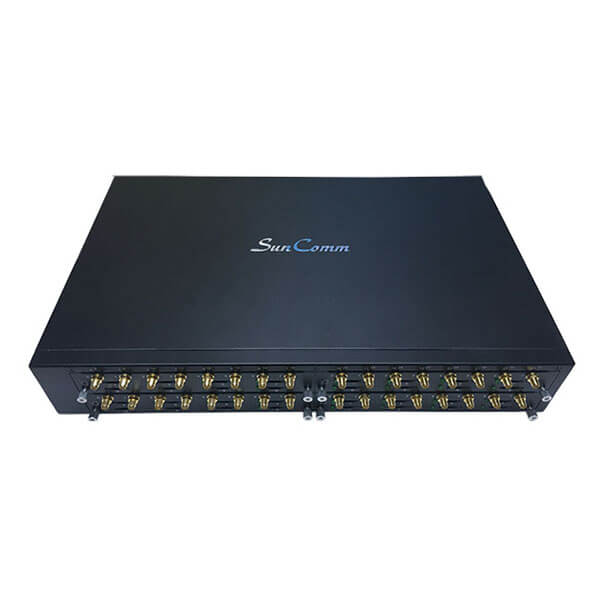

SunComm SC-3295-4G 4G LTE VoIP Terminal / 4G VoIP Gateway 32 SIM for 4G – VoIP connection, Call Center device, (covering 4G 3G 2G) VoLTE

^{Frequency Bands:}

^{Type A.}	^{FDD: B2/B4/B12}	^{WCDMA: B2/B4/B5}
^{Type E.}	^{FDD: B1/B3/B5/B7/B8/B20}
	^{TDD: B38/B40/B41}	^{WCDMA: B1/B5/B8}
	^{GSM: 900/1800MHz}
^{Type V.}	^{FDD: B4/B13}
^{Type J.}	^{FDD: B1/B3/B8/B18/B19/B26}
	^{TDD: B41}	^{WCDMA: B1/B6/B8/B19}
^{Type AU.}	^{FDD: B1/B2/B3/B4/B5/B7/B8/B28}
	^{TDD: B40}	^{WCDMA: B1/B2/B5/B8}
	^{GSM: 850/900/1800/1900}

^{* SC-3295-4G supports different frequency bands, please choose a dedicated type based on the region or operator.}

^{Key Features:}
^{1.   Supports up to 32 4G LTE Channels

2.   Supports to work with different mobile networks:

3.   Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks

4.   Supports Make Call through VoLTE

5.   HTTP API for SMS Application Integration

6.   SMS to Email and Email to SMS

7.   Flexible Dial Rules and Manipulation Rules}

^{Voice Processing:}
^{1.   Protocol: SIP v2.0, RFC3261, SIP TLS

2.   Codecs: G.711A/U law, G.723.1, G.729A/B

3.   Silence Suppression

4.   Comfort Noise Generator (CNG)

5.   Voice Activity Detection (VAD)

6.   Echo Cancellation: G.168 with up to 128ms

7.   Dynamic Jitter Buffer

8.   DTMF: RFC2833, SIP Info

9.   Call Progress Tone Generation

10.   Programmable Gain Control

11.   NAT: STUN, Dynamic NAT, Static NAT}

^Network:
^{1.   Static IP, DHCP Client,

2.   Network Protocols:

3.   TCP/UDP, TFTP, FTP, RTP/ RTCP, SSH, ARP, RARP, ICMP Ping, NTP, HTTP, DNS

4.   Static/Dynamic ARP Request

5.   PPTP VPN}

^Maintenance:
^{1.   Web/Telnet Configuration

2.   Configure Backup/Restore

3.   Firmware Upgrade by HTTP/TFTP

4.   Factory Reset

5.   CDR (10000 Lines CDRs Storage Locally)

6.   Syslog/Filelog

7.   Ping and Tracert

8.   Traffic statistics: TCP, UDP, RTP

9.   VoIP Call Statistics

10.   PSTN Call statistics: ASR, ACD, PDD

11.   Voice Diagnose with Loopback

12.   GSM Network Test

13.   IVR Customization

14.   Auto Provisioning

15.   SIP/RTP/PCM Capture}

^Mobile:
^{1.   USSD Encoding: Unicode/ASCII

2.   HTTP API for SMS

3.   Polarity Reverse

4.   PIN Modify

5.   CID/CLIR

6.   SMS Send and Receive

7.   SMS to Email

8.   Call Waiting/Call Back

9.   Call Forward

10.   GSM Audio Coding: HR, FR, EFR, AMR_FR, AMR_HR}

^{Software Features:}
^{1.   Calling Type:

2.   Mobile to VoIP, VoIP to Mobile

3.   SIP Trunk and Trunk Group

4.   Caller/Called Number Manipulation Rules

5.   SIP Codes Mapping

6.   White/Black List

7.   PSTN Hotline

8.   VoIP Hotline

9.   Abnormal Call Monitor

10.   Call Minutes Limitation for Ports/Single Call

11.   Balance Check

12.   Low Balance Alarm

13.   Auto Update SIM Number

14.   Random Call Interval

15.   Auto CLIP

16.   Signaling & RTP Encryption

17.   SMPP for SMS}

^{Physical Interface:}
^{1.   Mobile: Up to 32 Channels

2.   Antennas Connectors: SMA

3.   Ethernet Interfaces: 2*10/100 Base-T, RJ-45

4.   LED Indicators: Power, RUN, Signal Strength Indicators

5.   Console: 1* RS232 115200bps}

^{Environmental:}
^{1.   Power Supply

2.   Input:100-240V,50-60Hz

3.   Power Consumption: 68w

4.   Temperature (Operation): 0 ℃ ~ 45 ℃

(Storage): -20 ℃ ~80 ℃

5.   Operation Humidity: 10%-90% No Condensation

6.   Dimension(W/D/H): 440×270×75 mm

7.   Net Weight: 4.7kg

8.   Gross Weight (Package Weight): 8.2kg}
