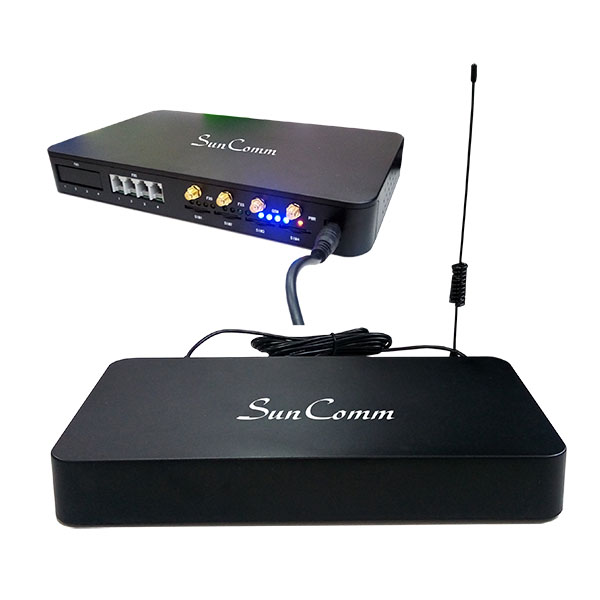

3G WCDMA Fixed Wireless Terminal (FWT) with 4SIM, 2 x RJ-11 for 3G - Analog network connection

Model：SCG-4Q-3G

Add to inquiry

SunComm SCG-4Q-3G 3G WCDMA Fixed Wireless Terminal (FWT) with 4SIM, 2 x RJ-11 for 3G - Analog network connection, Alarm system, CE

^{SCG-4Q-3G 3G WCDMA Fixed Wireless Terminal (FWT) is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect PBX for call extensions, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, it is a GSM Fixed Wireless Terminal that produces an Analog FXS phone line.}

^Features:
^{1.   It is a 4/8 channels GSM Gateway that has 4/8 ports FXS interfaces

2.   Each port has 1 SIM card slot

3.   It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.

4.   It is compatible with Asterisk

5.   Dialing tone frequency:450hz

6.   Employ U6100 module to make

7.   Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set

8.   Can adjust voice volume by setting up from telephone set

9.   SIM card supported (1.8V, 3V)

10.   Caller ID display

11.   DTMF Dialing

12.   Bell signal

13.   Polarity reversal

14.   The RJ-11 socket which connect the phone or billing system for metering purpose

15.   Antenna socket (SMA)

16.   IP Presetting

17.   Working status and Signal Strength by LED indicator}

^{Specification:}
^{1.   Phone interface: supply RJ-11 Phone Interface

2.   Hanging voltage: 45V

3.   Picking off voltage: 30mA / 41mA

4.   Dialing tone Frequency: 450Hz

5.   Antenna interface: Antenna amplifying>2.5db

6.   Sensitivity:<-104DBM

7.   Transmitting power<3W

8.   AC-Adapter interface: INPUT: AC 110~240V

9.   OUTPUT: 5V 7A

10.   AC-Power type: EU, US, AU, British can be optional

11.   Operation temperature: -10c~60C

12.   Storage temperature: -20C~70C

13.   Operation humidity:45%-95%

14.   Atmosphere pressure:86-106Kpa

15.   Environment noise: <60DB

16.   Transmitting Power:2W

17.   Sensitivity: <-104dbm

18.   Antenna Amplifying: >1.5db

19.   Dialing frequency: 450Hz

20.   Hanging voltage: 45V

21.   Picking current: 30mA/41Ma}

^Packing
^{1.   SCG-4Q-3G 3G FWT: 1pcs

2.   Power Supply Cable: 1pcs

3.   GSM Antenna with 3m cable: 4/8pcs

4.   Product dimension: L455x W280 x H45mm

5.   Gift box dimension: L510x W350x H64mm

6.   G.W: 5kg}
